扇形喷雾喷嘴

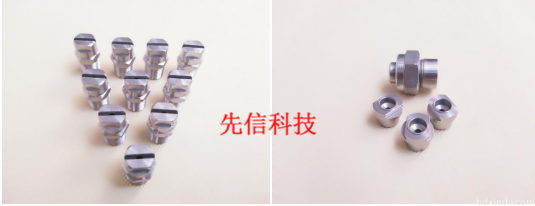

（HU型） （FSUN-S型）

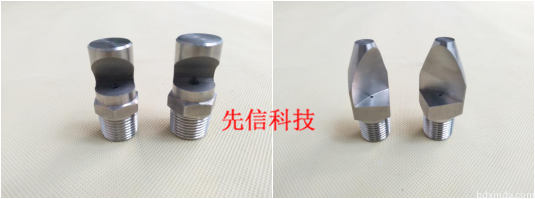

（K型） （P型）
一般应用： 主要材质： 链接方式:
1、清洗、润滑 1、不锈钢 1、NPT(内或外)
2、冷却、淬火 2、黄铜 2、BSPT(内或外)
3、加湿、喷涂 3、合金
4、水帘、防火 4、PP
5、高冲击力洗涤 5、PVDF
性能参数：HU扇形
| 喷雾角度（0.3Mpa压力下） |
|
| 120° | 110° | 95° | 80° | 65° | 50° | 45° | 40° | 35° | 25° | 15° | 0° |
| 备注：可按照客户要求定制喷雾角度 |
|
| 流量代码 | 链接螺纹 | 喷孔mm | 流量（升/分） |
|
| 1/8 | 1/4 | 3/8 | 1/2 | 0.05Mpa | 0.1Mpa | 0.15Mpa | 0.2 Mpa | 0.3 Mpa | 0.4 Mpa | 0.5 Mpa | 0.6 Mpa | 0.7 Mpa | 1.0 Mpa | 3.5Mpa |
|
| 01 |
● |
● |
● |
● | 0.66 |
| 0.23 | 0.28 | 0.32 | 0.39 | 0.46 | 0.51 | 0.56 | 0.60 | 0.72 | 1.3 |
|
| 015 |
● |
● |
● |
● | 0.79 |
| 0.34 | 0.40 | 0.48 | 0.59 | 0.68 | 0.76 | 0.84 | 0.90 | 1.1 | 2.0 |
|
| 02 |
● |
● |
● |
● | 0.91 |
| 0.46 | 0.56 | 0.64 | 0.79 | 0.91 | 1.0 | 1.1 | 1.2 | 1.4 | 2.7 |
|
| 03 |
● |
● |
● |
● | 1.1 | 0.48 | 0.68 | 0.83 | 0.97 | 1.2 | 1.4 | 1.5 | 1.7 | 1.8 | 2.2 | 4.0 |
|
| 04 |
● |
● |
● |
● | 1.3 | 0.65 | 0.91 | 1.1 | 1.3 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 | 5.4 |
|
| 05 |
● |
● |
● |
● | 1.4 | 0.80 | 1.1 | 1.3 | 1.6 | 2.0 | 2.3 | 2.5 | 2.8 | 3.0 | 3.6 | 6.7 |
|
| 06 |
● |
● |
● |
● | 1.6 | 0.97 | 1.4 | 1.7 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 8.1 |
|
| 08 |
● |
● |
● |
● | 1.8 | 1.3 | 1.8 | 2.2 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 10.8 |
|
| 10 |
● |
● |
● |
● | 2.0 | 1.5 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 13.5 |
|
| 15 |
● |
● |
● |
● | 2.4 | 2.5 | 3.4 | 4.2 | 4.6 | 5.9 | 6.8 | 7.6 | 8.4 | 9.0 | 10.8 | 20 |
|
| 20 |
● |
● |
● |
● | 2.8 | 3.2 | 4.6 | 5.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 27 |
|
| 30 |
● |
● |
● |
● | 3.6 | 4.8 | 6.8 | 8.3 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 40 |
|
| 40 |
|
● |
● |
● | 4.0 | 6.5 | 9.1 | 11.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 54 |
|
| 50 |
|
● |
● |
● | 4.4 | 8.0 | 11.4 | 14.0 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 68 |
|
| 60 |
|
● |
● |
● | 4.8 | 9.7 | 13.7 | 16.8 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 81 |
|
| 70 |
|
● |
● |
● | 5.2 | 11.2 | 16 | 19.6 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | 94 |
|
| 100 |
|
|
● |
● | 6.4 | 16.1 | 23 | 28.2 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 135 |
|
| 120 |
|
|
● |
● | 6.7 | 17.2 | 27 | 32 | 39 | 47 | 55 | 61 | 67 | 72 | 86 | 162 |
|
| 150 |
|
|
● |
● | 7.5 | 31 | 34 | 39 | 48 | 59 | 68 | 76 | 84 | 90 | 108 | 205 |
|
| 200 |
|
|
|
● | 8.7 | 39 | 46 | 51 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 270 |
|
备注：120度流量代码最大到10
110度流量代码最大到50
95度流量代码最大到200
性能参数：扇形喷嘴 -- K系列
| 流量代码 | 链接尺寸 | 孔径mm | 流量（升/分钟） | 喷流角度压力Mpa |
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 0.05 | 0.07 | 0.1 | 0.15 | 0.2 | 0.3 | 0.4 | 0.05 | 0.15 | 0.4 |
| 0.25 |
● |
|
|
|
| 0.41 |
|
| 0.11 | 0.14 | 0.16 | 0.2 | 0.23 |
| 83° | 117° |
| 0.50 |
● |
|
|
|
| 0.61 |
|
| 0.23 | 0.28 | 0.32 | 0.39 | 0.46 |
| 89° | 122° |
| 0.75 |
● |
|
|
|
| 0.71 |
| 0.29 | 0.34 | 0.42 | 0.48 | 0.59 | 0.68 |
| 106° | 125° |
| 1 |
● |
|
|
|
| 0.84 |
| 0.38 | 0.46 | 0.56 | 0.64 | 0.79 | 0.91 |
| 109° | 128° |
| 1.5 |
● |
|
|
|
| 1.0 | 0.48 | 0.57 | 0.68 | 0.84 | 0.97 | 1.2 | 1.4 | 73° | 108° | 125° |
| 2 |
● |
● |
|
|
| 1.2 | 0.64 | 0.76 | 0.91 | 1.1 | 1.3 | 1.6 | 1.8 | 83° | 113° | 129° |
| 2.5 |
● |
● |
|
|
| 1.3 | 0.81 | 0.95 | 1.1 | 1.4 | 1.6 | 2.0 | 2.3 | 98° | 122° | 133° |
| 3 |
● |
● |
|
|
| 1.4 | 0.97 | 1.1 | 1.4 | 1.7 | 1.9 | 2.4 | 2.7 | 86° | 112° | 126° |
| 4 |
● |
● |
|
|
| 1.7 | 1.3 | 1.5 | 1.8 | 2.2 | 2.6 | 3.2 | 3.6 | 97° | 123° | 132° |
| 5 |
● |
● |
|
|
| 1.9 | 1.6 | 1.9 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 | 114° | 128° | 142° |
| 7.5 |
● |
● |
|
|
| 2.3 | 2.4 | 2.9 | 3.4 | 4.2 | 4.8 | 5.9 | 6.8 | 101° | 119° | 134° |
| 10 |
● |
● |
|
|
| 2.6 | 3.2 | 3.8 | 4.6 | 5.6 | 6.4 | 7.9 | 9.1 | 115° | 133° | 145° |
| 12 |
● |
● |
|
|
| 2.9 | 3.9 | 4.6 | 5.5 | 6.7 | 7.7 | 9.5 | 10.9 | 128° | 139° | 153° |
| 15 |
● |
● |
|
|
| 3.3 | 4.8 | 5.7 | 6.8 | 8.4 | 9.7 | 11.8 | 13.7 | 98° | 113° | 123° |
| 18 |
● |
● |
|
|
| 3.6 | 5.8 | 6.9 | 8.2 | 10 | 11.6 | 14.2 | 16.4 | 106° | 120° | 131° |
| 20 |
● |
● |
|
|
| 3.8 | 6.4 | 7.6 | 9.1 | 11.2 | 12.9 | 15.8 | 18.2 | 110° | 122° | 133° |
| 22 |
|
● |
|
|
| 4.0 | 7.1 | 8.4 | 10 | 12.3 | 14.2 | 17.4 | 20 | 113° | 125° | 136° |
| 24 |
|
● |
|
|
| 4.1 | 7.7 | 9.2 | 10.9 | 13.4 | 15.5 | 18.9 | 22 | 115° | 131° | 144° |
| 27 |
|
● |
|
|
| 4.4 | 8.7 | 10.3 | 12.3 | 15.1 | 17.4 | 21 | 25 | 119° | 135° | 148° |
| 30 |
|
|
● |
|
| 4.6 | 9.7 | 11.4 | 13.7 | 16.7 | 19.3 | 24 | 27 | 100° | 110° | 121° |
| 35 |
|
|
● |
|
| 5.0 | 11.3 | 13.3 | 16 | 19.5 | 23 | 28 | 32 | 105° | 118° | 128° |
| 40 |
|
|
● |
● |
| 5.3 | 12.9 | 15.3 | 18.2 | 22 | 26 | 32 | 36 | 111° | 126° | 136° |
| 45 |
|
|
● |
● |
| 5.6 | 14.5 | 17.2 | 21 | 25 | 29 | 36 | 41 | 115° | 130° | 140° |
| 50 |
|
|
|
● |
| 6.0 | 16.1 | 19.1 | 23 | 28 | 32 | 39 | 46 | 117° | 131° | 140° |
| 60 |
|
|
|
● |
| 6.5 | 19.3 | 23 | 27 | 33 | 39 | 47 | 55 | 120° | 134° | 142° |
| 70 |
|
|
|
● |
| 7.1 | 23 | 27 | 32 | 39 | 45 | 55 | 64 | 123° | 137° | 146° |
| 80 |
|
|
|
● |
| 7.5 | 26 | 31 | 36 | 45 | 52 | 63 | 73 | 127° | 138° | 149° |
| 90 |
|
|
|
|
● | 8.0 | 29 | 34 | 41 | 50 | 58 | 71 | 82 | 120° | 133° | 140° |
| 100 |
|
|
|
|
● | 8.4 | 32 | 38 | 46 | 56 | 64 | 79 | 91 | 123° | 136° | 145° |
| 110 |
|
|
|
|
● | 8.8 | 35 | 42 | 50 | 61 | 71 | 87 | 100 | 125° | 138° | 148° |
| 120 |
|
|
|
|
● | 9.3 | 39 | 46 | 55 | 67 | 77 | 95 | 109 | 129° | 143° | 150° |
| 140 |
|
|
|
|
● | 10.3 | 45 | 53 | 64 | 78 | 90 | 111 | 128 | 118° | 127° | 135° |
| 160 |
|
|
|
|
● | 11.1 | 52 | 61 | 73 | 89 | 103 | 126 | 146 | 121° | 130° | 137° |
| 180 |
|
|
|
|
● | 11.5 | 58 | 69 | 82 | 100 | 116 | 142 | 164 | 124° | 133° | 139° |
| 210 |
|
|
|
|
● | 12.3 | 68 | 80 | 96 | 117 | 135 | 166 | 191 | 128° | 139° | 145° |
| 300 |
|
|
|
|
● | 14.7 | 97 | 114 | 137 | 167 | 193 | 235 | 275 | 110° | 128° | 135° |
| 450 |
|
|
|
|
● | 17.9 | 145 | 172 | 205 | 250 | 290 | 335 | 410 | 118° | 132° | 138° |
性能参数：扇形喷嘴 -- P系列
| 流量大小 |
链接尺寸 |
喷孔mm |
流量（升/分） |
喷流角度 |
尺寸 |
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1巴 | 2巴 | 3巴 | 4巴 | 5巴 | 6巴 | 7巴 | 10巴 | 1 巴 | 3巴 | 7巴 |
偏转角度 |
棒材尺寸 |
| 5010 |
| ● |
|
|
| 2.0 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 31° | 50° | 60° | 60° | 16 |
| 5020 |
| ● | ● |
|
| 2.8 | 5.7 | 8.1 | 9.9 | 11.4 | 12.7 | 14.0 | 15.1 | 18.0 | 42° | 50° | 59° | 42° | 19 |
| 5040 |
| ● | ● |
|
| 3.6 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 47° | 50° | 60° | 45° | 19 |
| 5060 |
|
| ● |
|
| 4.8 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 55° | 50° | 53° | 37° | 25 |
| 50100 |
|
| ● |
|
| 6.0 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 72° | 50° | 55° | 40° | 32 |
| 50125 |
|
| ● |
|
| 6.7 | 28 | 40 | 49 | 57 | 64 | 70 | 75 | 90 | 72° | 50° | 59° | 38° | 32 |
| 50160 |
|
| ● |
|
| 7.5 | 36 | 52 | 63 | 73 | 82 | 89 | 96 | 115 | 72° | 50° | 55° | 37° | 32 |
| 50200 |
|
| ● |
|
| 8.3 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 72° | 50° | 55° | 32° | 22 |
| 4040 |
|
| ● |
|
| 3.6 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 31° | 40° | 50° | 35° | 25 |
| 4050 |
|
| ● |
|
| 4.0 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 31° | 40° | 49° | 33° | 25 |
| 4060 |
|
| ● |
|
| 4.4 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 32° | 40° | 49° | 33° | 25 |
| 4070 |
|
| ● |
|
| 5.2 | 16 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | 32° | 40° | 49° | 29° | 25 |
| 4080 |
|
| ● |
|
| 5.2 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 32° | 40° | 48° | 26° | 25 |
| 4090 |
|
| ● |
|
| 5.6 | 21 | 29 | 36 | 41 | 46 | 50 | 54 | 65 | 34° | 40° | 44° | 28° | 25 |
| 40100 |
|
| ● |
|
| 6.0 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 35° | 40° | 44° | 28° | 12 |
| 3504 | ● |
|
|
|
| 1.2 | 0.91 | 1.3 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 | 20° | 35° | 41° | 40° | 16 |
| 3510 |
| ● |
|
|
| 2.0 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 18° | 35° | 39° | 36° | 19 |
| 3520 |
| ● | ● |
|
| 2.8 | 4.6 | 6.4 | 9.9 | 11.4 | 12.7 | 14.0 | 15.1 | 18.0 | 24° | 35° | 40° | 30° | 19 |
| 3530 |
|
| ● |
|
| 3.2 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 24° | 35° | 39° | 28° | 19 |
| 3540 |
|
| ● |
|
| 3.6 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 26° | 35° | 41° | 26° | 22 |
| 3550 |
|
| ● |
|
| 4.0 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 28° | 35° | 38° | 23° | 22 |
| 3560 |
|
|
| ● |
| 4.4 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 31° | 35° | 38° | 27° | 25 |
| 3580 |
|
|
| ● |
| 5.2 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 29° | 35° | 39° | 24° | 25 |
| 35100 |
|
|
| ● |
| 6.0 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 26° | 35° | 40° | 19° | 25 |
| 35160 |
|
|
|
| ● | 7.5 | 36 | 52 | 63 | 73 | 82 | 89 | 96 | 115 | 26° | 35° | 40° | 23° | 32 |
| 35200 |
|
|
|
| ● | 8.3 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 26° | 35° | 40° | 22° | 32 |
| 2540 |
| ● |
|
|
| 3.6 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 15° | 25° | 34° | 25° | 19 |
| 1510 |
| ● |
|
|
| 2.0 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 |
| 15° | 23° | 22° | 16 |
| 1520 |
| ● |
|
|
| 2.8 | 4.6 | 6.4 | 9.9 | 11.4 | 12.7 | 14.0 | 15.1 | 18.0 |
| 15° | 19° | 19° | 16 |
| 1530 |
|
| ● |
|
| 3.2 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 6° | 15° | 24° | 25° | 19 |
| 1540 |
|
| ● |
|
| 3.6 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 8° | 15° | 21° | 18° | 22 |
| 1550 |
|
| ● |
|
| 4.4 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 9° | 15° | 20° | 15° | 22 |
| 1560 |
|
| ● |
|
| 4.8 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 10° | 15° | 19° | 14° | 25 |
| 1580 |
|
|
| ● |
| 5.2 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 11° | 15° | 18° | 14° | 25 |
| 15100 |
|
|
| ● |
| 6.0 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 11° | 15° | 18° | 14° | 25 |
| 15200 |
|
|
|
| ● | 8.3 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 12° | 15° | 18° | 14° | 32 |
性能参数：燕尾槽组合式扇形喷嘴 -- FSUN系列
| 链接尺寸 | 喷射角度(0.5mpa下) | 孔径mm | 流量（升/分钟）压力Mpa |
| 3/8 | 3/4 | 1-1/4 | 20°，30°，45°，60°，75°，90°，120° | 0.05Mpa | 0.1 Mpa | 0.2 Mpa | 0.3 Mpa | 0.5 Mpa | 1 Mpa |
| 喷嘴型号 |
|
● |
|
| FSUN-S-0.6 | 0.8 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.9 |
|
● |
|
| FSUN-S-1 | 1.0 | 0.3 | 0.5 | 0.6 | 0.8 | 1.0 | 1.4 |
|
● |
|
| FSUN-S-1.5 | 1.2 | 0.5 | 1.7 | 1.0 | 1.2 | 1.5 | 2.1 |
|
● |
|
| FSUN-S-2 | 1.4 | 0.6 | 0.9 | 1.3 | 1.6 | 2.0 | 2.8 |
|
● |
|
| FSUN-S-2.5 | 1.5 | 0.8 | 1.1 | 1.6 | 1.9 | 2.5 | 3.5 |
|
● |
|
| FSUN-S-3 | 1.7 | 1.0 | 1.3 | 1.9 | 2.3 | 3.0 | 4.2 |
|
● |
|
| FSUN-S-4 | 20 | 1.3 | 1.8 | 2.5 | 3.1 | 4.0 | 5.6 |
|
● |
|
| FSUN-S-5 | 2.2 | 1.5 | 2.2 | 3.2 | 3.9 | 5.0 | 7.1 |
|
● |
|
| FSUN-S-6 | 2.5 | 1.9 | 2.7 | 3.8 | 4.6 | 6.0 | 8.5 |
|
● |
|
| FSUN-S-7.5 | 2.7 | 2.4 | 3.4 | 4.7 | 5.8 | 7.5 | 10.6 |
|
● |
● |
| FSUN-S-10 | 3.0 | 3.2 | 4.5 | 6.3 | 7.8 | 10.0 | 14.1 |
|
● |
● |
| FSUN-S-13 | 3.5 | 4.1 | 5.8 | 8.2 | 10.1 | 13.0 | 18.4 |
|
● |
● |
| FSUN-S-16 | 4.0 | 5.1 | 7.2 | 10.1 | 12.4 | 16.0 | 22.6 |
|
● |
● |
| FSUN-S-20 | 4.5 | 6.3 | 8.9 | 12.7 | 15.5 | 20.0 | 28.3 |
|
● |
● |
| FSUN-S-25 | 5.0 | 7.9 | 11.2 | 15.8 | 19.4 | 25.0 | 35.4 |
|
|
● |
| FSUN-S-32 | 5.5 | 10.1 | 14.3 | 20.2 | 24.8 | 30.0 | 45.3 |
|
|
● |
| FSUN-S-40 | 6.0 | 12.7 | 17.9 | 25.3 | 31.0 | 40.0 | 56.6 |
|
|
● |
| FSUN-S-50 | 7.0 | 15.8 | 22.4 | 31.6 | 38.7 | 50.0 | 70.7 |
|
|
● |
● | FSUN-S-63 | 8.0 | 19.9 | 28.2 | 39.8 | 48.8 | 63.0 | 89.1 |
|
|
● |
● | FSUN-S-80 | 9.0 | 25.3 | 35.8 | 50.6 | 62.0 | 80.0 | 113.1 |
|
|
● |
● | FSUN-S-100 | 10.0 | 31.6 | 44.7 | 63.2 | 77.5 | 100.0 | 141.1 |
|
|
● |
● | FSUN-S-130 | 11.0 | 41.4 | 58.1 | 82.2 | 100.7 | 130.0 | 183.8 |
|
|
● |
● | FSUN-S-160 | 12.0 | 50.0 | 71.6 | 101.2 | 123.9 | 160.0 | 226.3 |
|
|
● |
● | FSUN-S-200 | 13.0 | 63.2 | 89.4 | 126.5 | 154.9 | 200.0 | 282.8 |
|
|
● |
● | FSUN-S-250 | 15.0 | 79.1 | 111.8 | 158.1 | 193.7 | 250.0 | 353.6 |
注：1、如果焊接底座需要特殊长度，请另外标注。
2、我公司还可以提供带圆弧的焊接底座，如需要，请与我公司联系。
3、FSUN-S系列喷嘴，燕尾槽位置与扇面之间存在角度偏转，方便喷嘴排布，以实现均匀的喷射面。
3/8英寸的喷嘴： 偏转角度为5°
3/4英寸的喷嘴： 偏转角度为55°
1-1/4英寸的喷嘴： 偏转角度为15°
